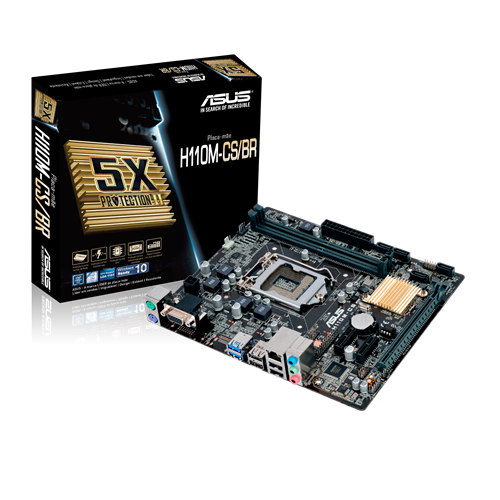

ASUS H110M CS Motherboard
Roll over image to zoom in
ASUS H110M CS Motherboard
ASUS H110M CS Motherboard FEATURES
- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR4 memory support
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Easy PC DIY with safe motherboard-mounting design
- Fan Xpert advanced fan controls for ultimate cooling and silent performance
ASUS H110M CS Motherboard SPECIFICATIONS
| CPU | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H110 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1 Supports Intel® Extreme Memory Profile (XMP) |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support VGA output support : RGB port – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| Storage | Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2 |
| LAN | Realtek® RTL8111H |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB Ports | Intel® H110 chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| ASUS H110M CS Motherboard Special Features | ASUS 5X Protection II : – ASUS LANGuard – 2.5X higher surge tolerance – ASUS Overvoltage Protection – World-class circuit-protecting power design – ASUS DIGI+ VRM – 4 Phase digital power design – ASUS DRAM Overcurrent Protection – Prevents damage from short circuits – ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability – ASUS ESD Guards – Electrostatic discharge protection ASUS EPU : – EPU ASUS Exclusive Features : – AI Suite 3 – Ai Charger – Anti-Surge – Low EMI Solution – USB 3.0 Boost – Mobo Connect – PC Cleaner Remote Entertainment – Media Streamer ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – Push Notice ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM |
| Operating System Support | Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 , 32bit/64bit *4 |
| ASUS H110M CS Motherboard Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header |
| Accessories | User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| Form Factor | mATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Read More: https://www.asus.com/in/Motherboards-Components/Motherboards/Others/H110M-CS/
Related Products: https://www.pcisland.in/product-category/pc-parts/motherboard/
Additional information
| Weight | .700 kg |
|---|---|
| Dimensions | 25 × 24 × 6 cm |
| Manufacturer |
