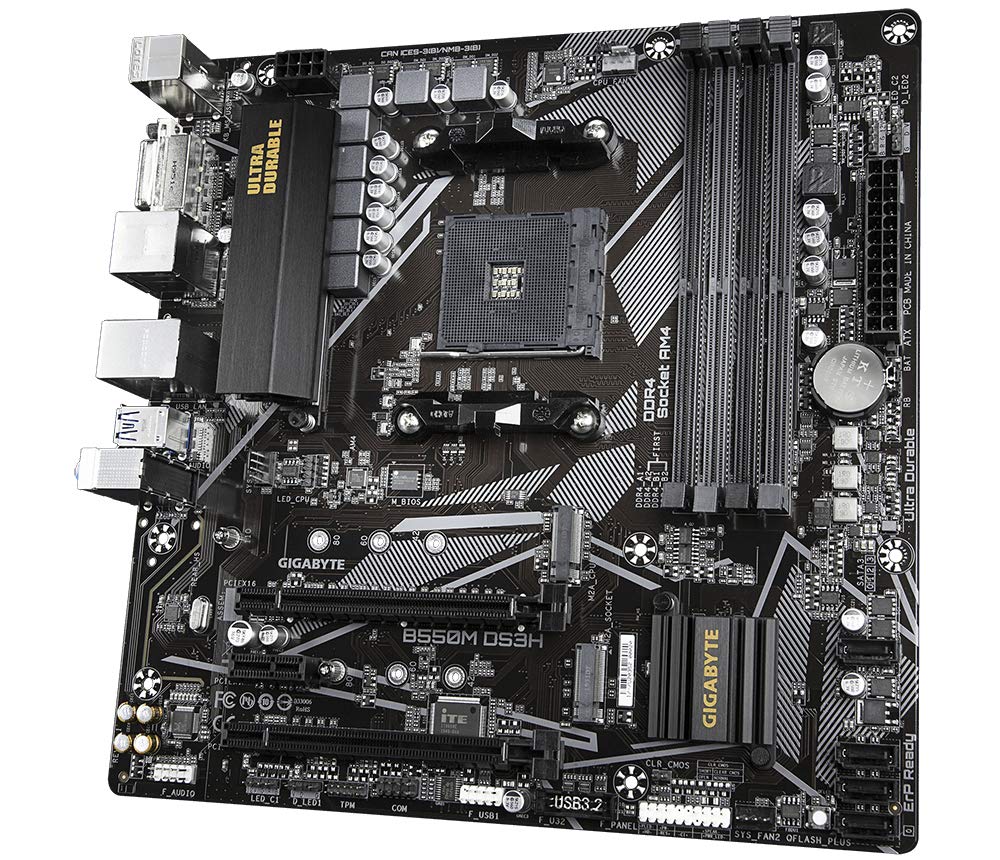

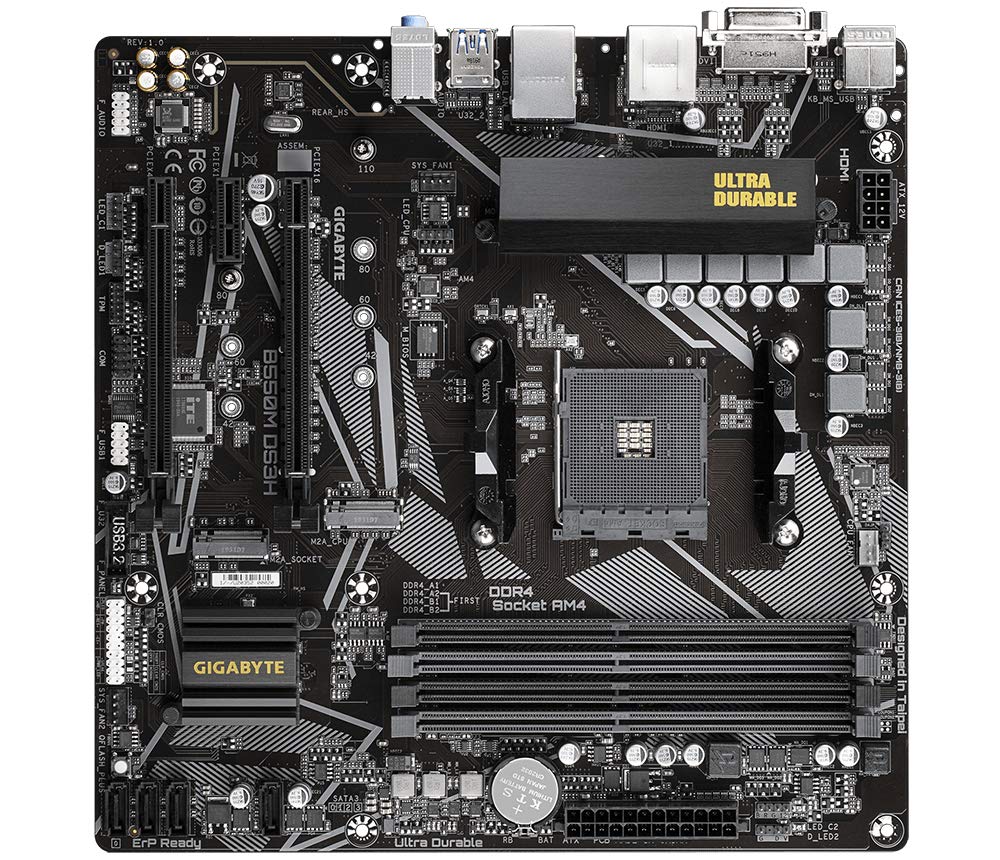

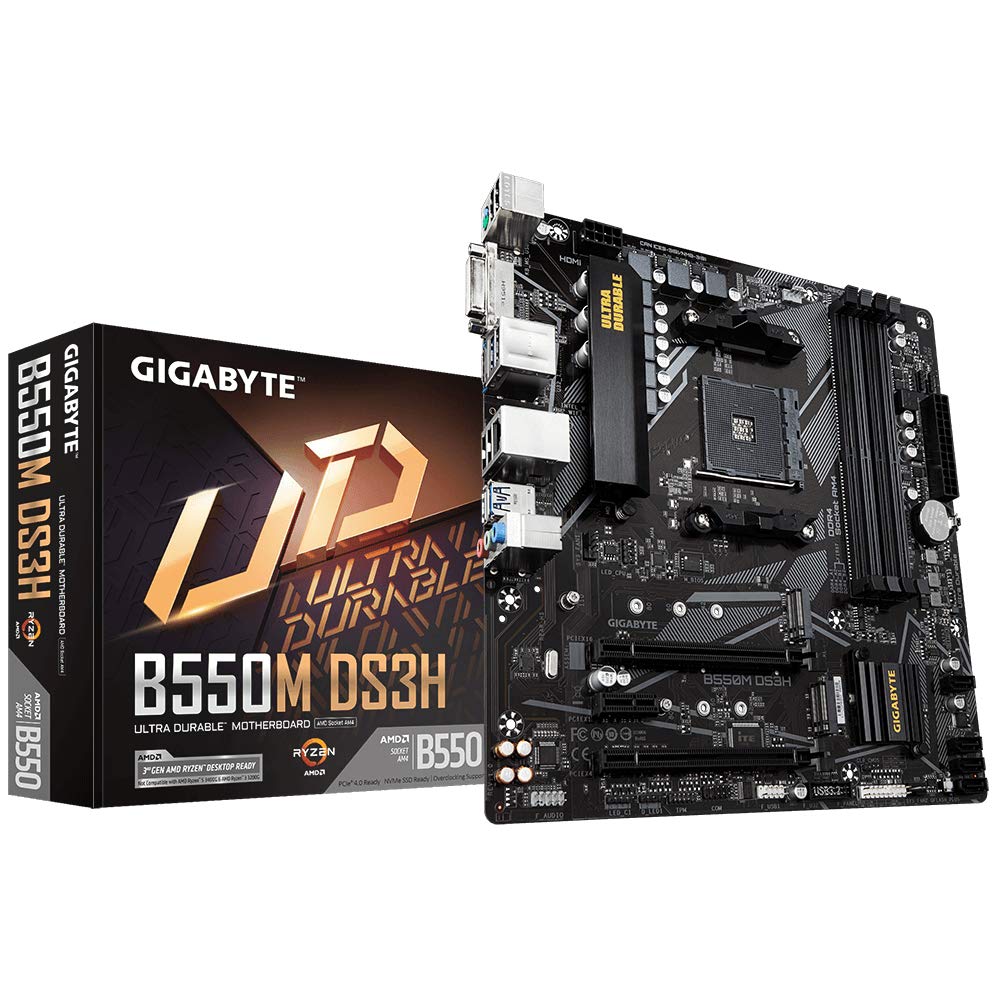

GIGABYTE B550M DS3H MOTHERBOARD
₹9,292.00₹14,999.00 (-38%)
GIGABYTE B550M DS3H MOTHERBOARD
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- Supports 3rd Gen AMD Ryzen Processors
- Graphics Card Interface: Pci E
Description
GIGABYTE B550M DS3H MOTHERBOARD
Solid Pin Power Connector
DVI
HDMI
Realtek GbE LAN
Ultra Durable PCIe Slot
• PCIe® 4.0 Slot
• Running 1* x16
• Running 1* x16
Audio Noise Guard
High-End Audio Capacitors
RGB FUSION 2.0
• Addressable LED Header*2
• RGB LED Header*3
• RGB LED Header*3
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Supports 3rd Gen AMD Ryzenâ„¢ Processors
Dual Channel DDR4, 4 DIMMs
Dual M.2 Connectors
1. 22110 M.2
• NVMe PCIe® 4.0/3.0 x4 & PCIe® 3.0 x2
• 1x PCIe 4.0® M.2 Slot
• NVMe PCIe® 4.0/3.0 x4 & PCIe® 3.0 x2
• 1x PCIe 4.0® M.2 Slot
2. 2280 M.2
• NVMe PCIe 3.0 x2 and SATA Mode (from Chipset)
Q-Flash Plus Button
Smart Fan 5 + FAN STOP
• 3 Fan Connectors
• 5 Temperature Sensors
• 5 Temperature Sensors
AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors
Detail information please refer AMD official website:Â https://www.amd.com/en/technologies/store-mi
5+3 Phases Pure Digital VRM Solution with Low RDS(on)MOSFETs
GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzenâ„¢ CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Low RDS(on)Â MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
‧ Lower temperature, smaller size, better thermal characteristics.
PCIe 4.0* Hardware Design
PCIe 4.0 Slot
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.
*Actual support may vary by CPU.
Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Note: Only New Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics processors support displaying function.
Learn more about PERFORMANCE
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan Connectors
Internal Temperature SensorsDifferent models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
â– 5 Temperature Sensors
â– 3 Fan Pin Headers
â– All Fan Pin Headers Upgraded to Hybrid Fan Headers
â– Interoperable Fans and Sensors
â– Intuitive UI for Fan Control
â– 3 Fan Pin Headers
â– All Fan Pin Headers Upgraded to Hybrid Fan Headers
â– Interoperable Fans and Sensors
â– Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.
RGB Fusion 2.0 Software
RGB Fusion APP
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
GIGABYTE Patented Double Locking Bracket
Solid Pin Power Connectors
B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Specification
Additional information
| Brand | GIGABYTE |
|---|---|
| Model | B550M DS3H |
| Item model number | B550M DS3H |
| Computer Memory Type | DDR4 SDRAM |
| Mounting Hardware | Motherboard |
| Country of Origin | China |
